Github Action with Azure

In this post, I will demonstrate a pipeline that is triggered only when code is pushed to the testing or main branch. The pipeline includes static code analysis, unit testing, and an image vulnerability scan. After these checks, the container image is deployed to Azure Kubernetes Service (AKS).

Proccess

Code Repo

Code Repo

Features

• Dev Backend Code checks - Code Analysis, Test
• UAT Backend CI - Test, Build, and Deploy to UAT
• PROD Backend CD - Deploy Backend Services to AKS
• PROD Frontend CI & CD

Prerequirements

• An Azure account with a credit limit
• Install Terraform

Step 1: Initialize Production Env by Terraform

cd terraform/production/
terraform init
terraform plan
terraform apply

Step 2: Collect relevant information

Get Storage Account key

az storage account keys list --resource-group chriswen430-rg --account-name chriswen430stg202507 --output table

Get container registry info

az acr show --name chriswen430acr202507 --resource-group chriswen430-rg --query id --output tsv
az acr show --name chriswen430acr202507 --resource-group chriswen430-rg  --output table

az acr credential show --name chriswen430acr202507 --resource-group chriswen430-rg --query "username" -o tsv
az acr credential show --name chriswen430acr202507 --resource-group chriswen430-rg --query "passwords[0].value" -o tsv

Create Service Principal for GitHub Action

az ad sp create-for-rbac --name "github-action-sp" --role Owner  --scope /subscriptions/e43f0850-53ec-498f-a66c-b4178b6d37f6/resourceGroups/chriswen430-rg --sdk-auth

Step 3: Configure GitHub Secrets

Step 5: Test Pipeline

Dev Backend Code checks - Code Analysis, Test

• File Path: .github/workflows/dev-backend.yml
• Main Steps:
  • Step 1: Code Quality Checks and Unit Tests
    • Static Code Analysis by flake8
    • Unit Test
  • Step 2: Build Image and Scan Vulnerabilities
    • Build Docker Image
    • Scan Image Vulnerabilities by Trivy



UAT Backend CI - Test, Build, and Deploy to UAT

• File Path: .github/workflows/uat-backend-ci.yml
• Main Steps:
  • Step 1: Code Quality Checks and Unit Tests
  • Step 2: Build Image and Scan Vulnerabilities
  • Step 3: Create Simulated Env to Test Deployment


PROD Backend CD - Deploy Backend Services to AKS

• File Path: .github/workflows/prod-backend-cd.yml
• Main Steps:
  • Step 1: Build and Push Image to ACR
  • Step 2: Update Kubernetes Configuration with New Image
  • Step 3: Deploy Backend Infrustructure
  • Step 4: Deploy Backend Services


PROD Frontend CI & CD

• File Path: .github/workflows/prod-frontend-ci&cd.yml
• Main Steps:
  • Step 1: Build and Push Image to ACR
  • Step 2: Update Kubernetes Configuration with New Image
  • Step 3: Deploy Frontend Service

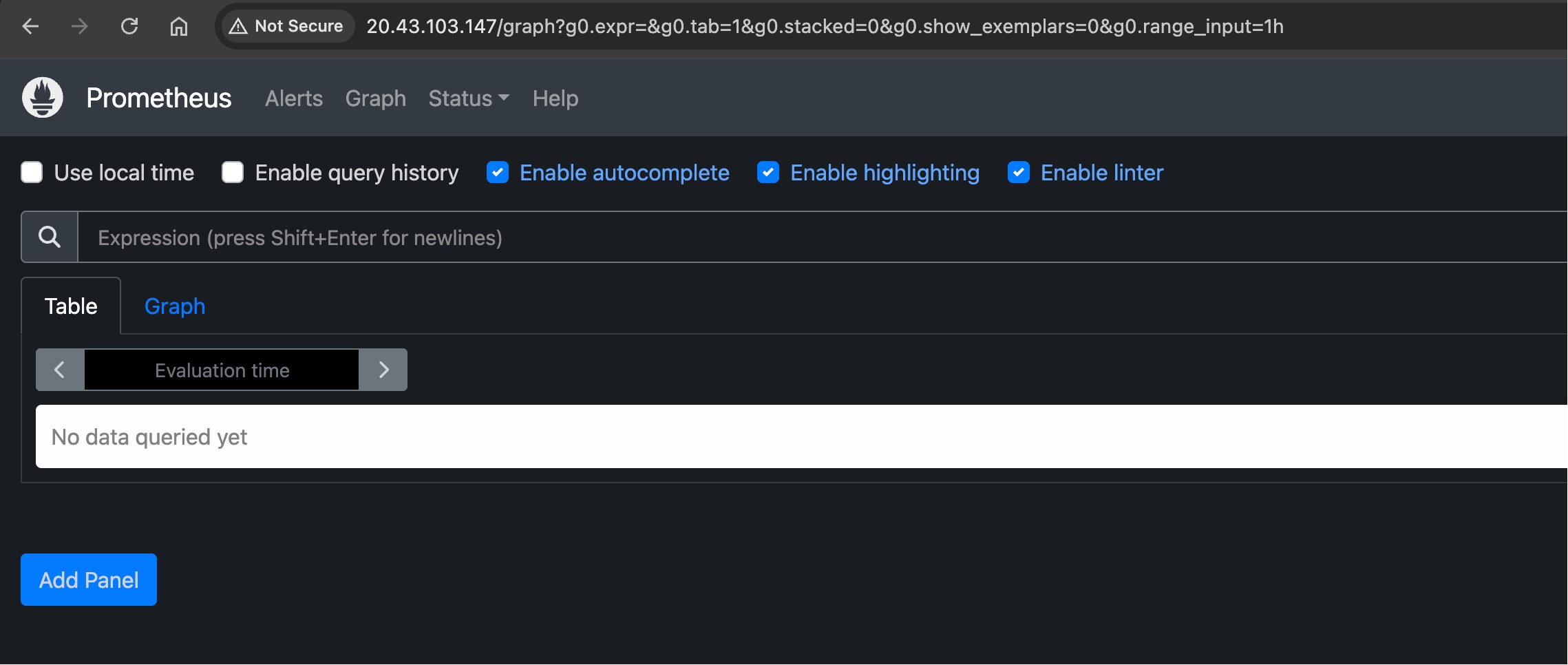

Step 6: Create Promethus and Grafana Dashboards

prerequisties: connect to AKS cluster

create promethus and grafana

kubectl apply -f prometheus-configmap.yaml -f prometheus-deployment.yaml -f prometheus-rbac.yaml
kubectl apply -f grafana-deployment.yaml

Set Connections

Set Metrics
